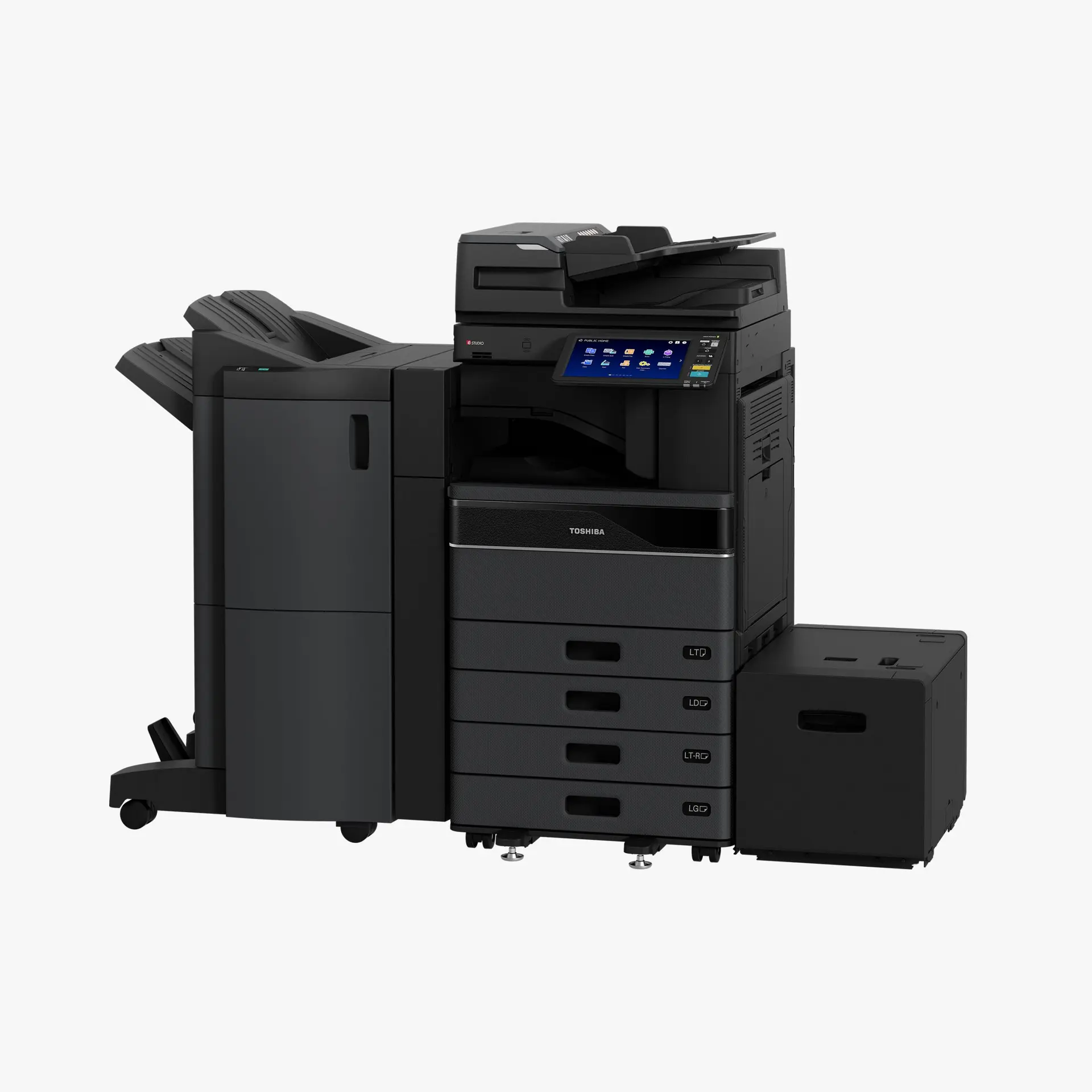

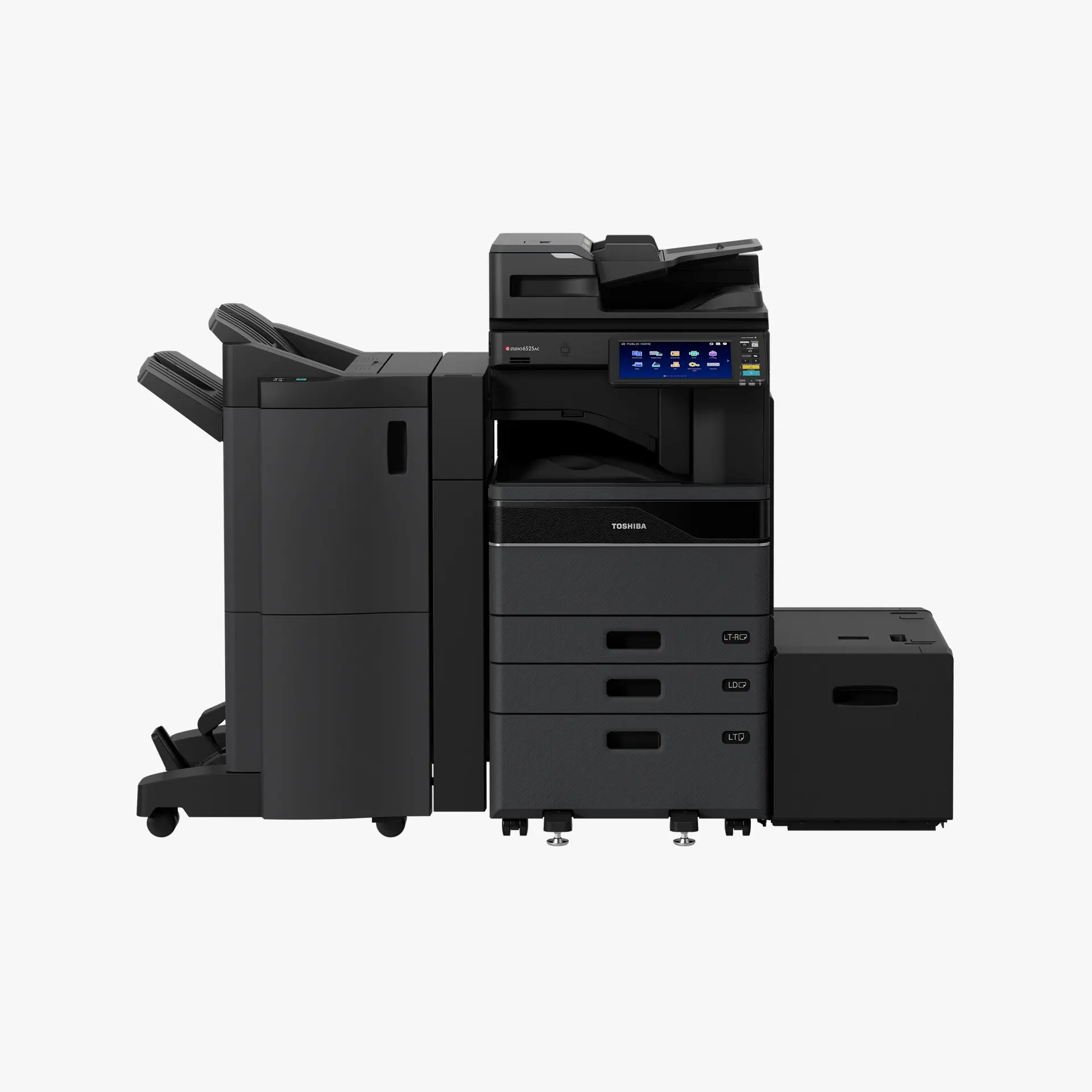

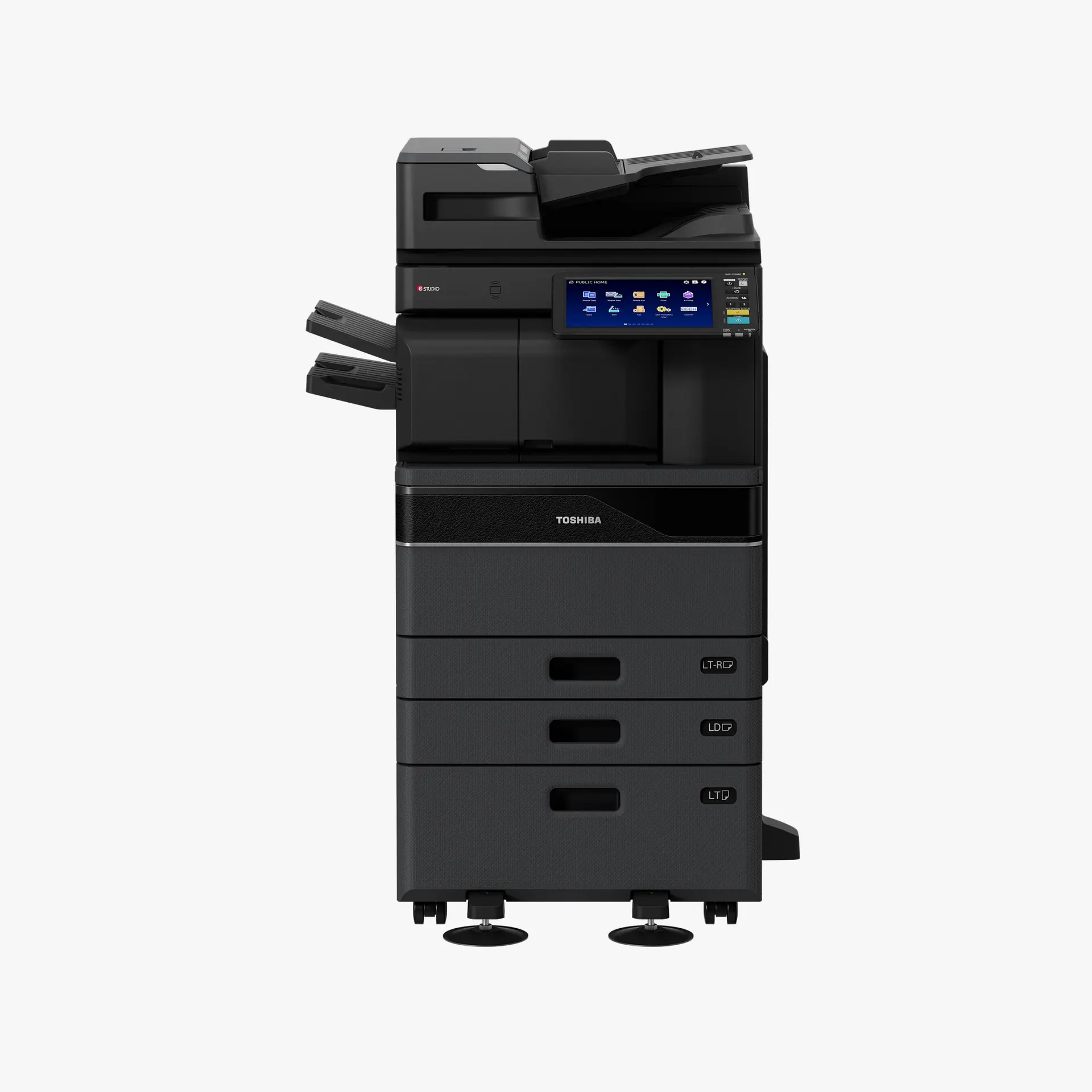

e-STUDIO4528A
Create a powerful printing hub that frees up space at the office. Along with its compact design, our monochrome MFP’s cloud features and advanced security make it easy and safe for hybrid teams to get work done from anywhere.
- Print faster with speeds up to 45 pages per minute
- Print, copy, scan, and fax in a small footprint
- Free your team to work remotely with cloud features
- Safeguard information with advanced security
- Description
- Additional information
Description
Technical Specifications
| Features | Dual Scan Document Feeder – Available with Double Feed Detection – Scans up to 240 IPM; holds up to 300 originals (refillable) |
| 10.1” Tiltable Front Panel | Makes programming jobs easier than ever – even for wheelchair users – and is Section 508 friendly |
| Card Reader Pocket | Enables badge authentication to control device access |
| Soft Closing Drawers | Automatically pull drawer closed when initiated and provide a luxury experience |
| 65-Sheet Stapling Finishers and an Output Capacity of up to 3,000 Pages | Enables bigger jobs |
| Saddle Stitch Finishing | Enables up to 60-page booklets, and unique avalanche tray increases exit capacity |
| Tandem LCF Pedestal | Holds 2 x 1,000-sheet stacks of letter-size paper, while refillable design allows users to add paper while MFP is in use |
| 2,000-Sheet External LCF | Boosts paper capacity to an amazing 5,200 sheets |
| Main Specifications | |
| Copy Process | Indirect Electrostatic Photographic Method/OPC/Laser Printing/Heat Roller Fusing |
| Display | 10.1” Color WSVGA Touch Screen Tilting Display |
| Copy Speed | 45 PPM (LT) |
| First Copy Out | Less Than 3.6 Seconds |
| Warm-Up Time | From Powering On: Approx. 20 Seconds From Sleep & Low Power: Less Than 20 Seconds |
| Copy Resolution | 600 x 600 dpi |
| Stack Feed Bypass | 3.9” x 5.8” to LD, Envelope |
| Multiple Copying | Up to 999 Copies |
| Paper Capacity | Standard 1,200 Sheets/Max. 5,200 Sheets |
| Original Feed | 300-Sheet DSDF or DSDF with Double-Feed Detection or 100-Sheet RADF |
| Max. Original Size | LD/A3 |
| Paper Feed Sizes | Drawer 1: 550 Sheets-ST-R to LD, Drawer 2: 550 Sheets-ST-R to LD, Stack Feed Bypass: 100 Sheets-3.9” x 5.8” to LD, Opt. 550-Sheet Paper Feed Pedestal-ST-R to LD, Opt. 550-Sheet Drawer for PFP-ST-R to LD, Opt. Envelope Cassette for PFP-Approx. 60 Envelopes/550 Sheets-ST-R to LG. Opt. 2,000-Sheet Tandem LCF (Pedestal Type)-LT Only, Opt. 2,000-Sheet External LCF-LT Only |
| Paper Weights | Standard: 550 Sheets x 2-16 lb Bond-140 lb Index, Stack Feed Bypass: 100 Sheets-14 lb Bond-140 lb Index, Opt. 550-Sheet Paper Feed Pedestal-16 lb Bond-140 lb Index, Opt. 550-Sheet Drawer for PFP -16 lb Bond-140 lb Index, Opt. Envelope Cassette for PFP-16 lb Bond-140 lb Index, Opt. 2,000-Sheet Tandem LCF (Pedestal Type)-16 lb Bond-140 lb Index, Opt. 2,000-Sheet External LCF-LT-16 lb Bond-140 lb Index |
| Duplex | Standard Automatic Duplex Unit (16 lb Bond-140 lb Index) |
| Reproduction Ratio | 25% to 400% |
| Max Duty Cycle | Max. 150K Month |
| Weight | Approx. 125 lb |
| Approx. Dimensions | 26” (W) x 25.2” (D) x 41.2” (H) |
| Toner Yield | 43.9K @ 5% |
| Power Source | 120 Volts, 50/60 Hz, 12 Amps |
| Power Consumption | Maximum 1.8kW (120V) |
| Plug Type | NEMA 5/15 |
| Memory | 4GB |
| Hard Disk Drive | 128GB Solid State Drive (SSD) |
| Controller Specifications | |
| PDL | PCL5e, PCL5c, PCL6 (PCL XL), PS3, PDF, XPS, JPEG |
| Print Speed | 45 PPM (LT) |
| Print Resolution | 600 x 600 dpi or 1,200 x 1,200 dpi or 3,600 (Equivalence) x 1,200 dpi (with Smoothing) (PS3 Only) |
| Operating Systems | Windows® 8.1, 10, 11, Windows Server® 2012/R2, Windows Server® 2016/19/22, Macintosh® (macOS X 10.10-15, 12), Unix®, Linux® |
| Network Protocols | TCP/IP (IPv4, IPv6), NetBIOS over TCP/IP, IPX/SPX® for Novell® Environments, EtherTalk® for Macintosh Environments |
| Printing Protocols | SMB V1-3, LPR/LPD, IPP V1.2 w/Authentication (TLS 1.2/1.3), AppleTalk® PAP or EtherTalk®, Port 9100 (Bi-Directional), NetWare P-SERVER LPD w/ iPrint, Bluetooth (HCRP/BIP/OPP/FTP), WS Print, FTP |
| Print Drivers | Windows® 8.1 (32-bit, 64-bit), Windows Server® 2012/R2 (64-bit), Windows® Server 2016/19/22, Windows® 10, 11 (64-bit), macOS X 10.12-15, 11, 12 |
| Interface | RJ-45 Ethernet (10/100/1000 Base-T), USB 2.0 (High-speed), Optional 802.11b/g/n, Wireless LAN, Optional Bluetooth |
| Wireless Device | AirPrint®, Mopria®, e-BRIDGE Print & Capture Application on iOS and Android (Available via Apple App Store or Google Play) |
| Device Management | TopAccess |
| Account Control | Up to 10,000 users or 1,000 Departments Supports User Authentication (on Device), Login Name/Password (via Windows domain) or Login Name/Password (via LDAP Server) for Copy, Print, Scan, Fax, List, and User Function |
| Accessibility Features | Tilt Front Panel, Job Programs, Universal Grip for Paper Trays, Disable Screen Timeout, Audible Beeps, Optional Voice Assist |
| Security Features | User Authentication, Trusted Platform Module, On-Board Data Scramble Function, SCEP, Disable e-Filing, Disable Copy, Disk Overwrite, IP Address Filtering (10 Sets), MAC Address Filtering (10 Sets), Network Service Control, Network Port Control, SMB Packet Signing, SSL/TLS (HTTP, IPP, LDAP, SMTP, POP, FTP, DPWS, SYSLOG), IPsec (IKEv1, IKEv2), Security Mode Change, CC Certified (ISO/IEC15408*) with HCD-PP v1.0, IEEE802.1X (Wired/Wireless), Digital Signature for Client Utilities, Password Policy, Password Lock, Password Expiration, Self Testing, Job Access Control, Log Access Control for Job Log, Security Stamp, Role Based Access Control, Secure PDF, Digital Signature for Firmware Update, Integrity Check Function, Image Log, Card Authentication, Biometric Authentication *Conformance with HCD-PP v1.0 in High Security Mode |
| Environmental Stds | ENERGY STAR®, EPEAT Gold, Californian Proposition 65 |
| Certification | WHQL (Windows® 8, 8.1, 10, 11, 2012, 2012 R2, 2016/19/22), Novell®, Citrix®, SAP, AirPrint® and Mopria® |
| Scan Specifications | |
| Scan Speed | DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color), RADF Scan: Up to 73 IPM (Monochrome or Color) |
| Scan Weights | DSDF Simplex or Duplex: 9.3-110lb Bond RADF Scan: Simplex: 9.3-41.8lb Bond, Duplex: 13.3-41.8lb Bond |
| Scan Modes | Standard: Full Color, Auto Color, Monochrome, Grayscale DOC/XLS/PPT/PDF |
| Scan Resolution | 600 dpi, 400 dpi, 300 dpi, 200 dpi, 150 dpi, 100 dpi |
| File Formats | Monochrome: TIFF-Multi/Single Page, PDF-Multi/Single Page, Searchable PDF, XPS-Multi/Single Page, DOCX, XLSX, PPTX Color/Grayscale: JPEG, TIFF-Multi/Single Page, PDF-Multi/Single Page, Slim PDF, Searchable PDF, XPS-Multi/Single Page, DOCX, XLSX, PPTX |
| Image Compression | Color/Grayscale: JPEG (High, Middle, Low) |
| Fax Specifications | |
| Compatibility | Super G3 |
| Data Compression | MH/MR/MMR/JBIG |
| Transmission Speed | Approx. 3 Seconds Per Page |
| Fax Modem Speed | Up to 33.6 Kbps |
| Memory Transmission | 100 Jobs (with HDD), 2,000 Destinations Max. 400 Destinations /Job |
| Scan Speed | 0.7 Seconds Per Page, Maximum 73 IPM |
| e-Filing Specifications | |
| Operation Method | Color Touch Screen Control Panel or Client PC |
| Number of Boxes | 1 Public Box; 200 Private User Boxes |
| Capacity of Boxes | 100 Folder per Box; 400 Documents per Folder/Box; 200 Pages per Document |
Additional information
| Brand | Toshiba |
|---|---|
| Speed | 45 PPM |
