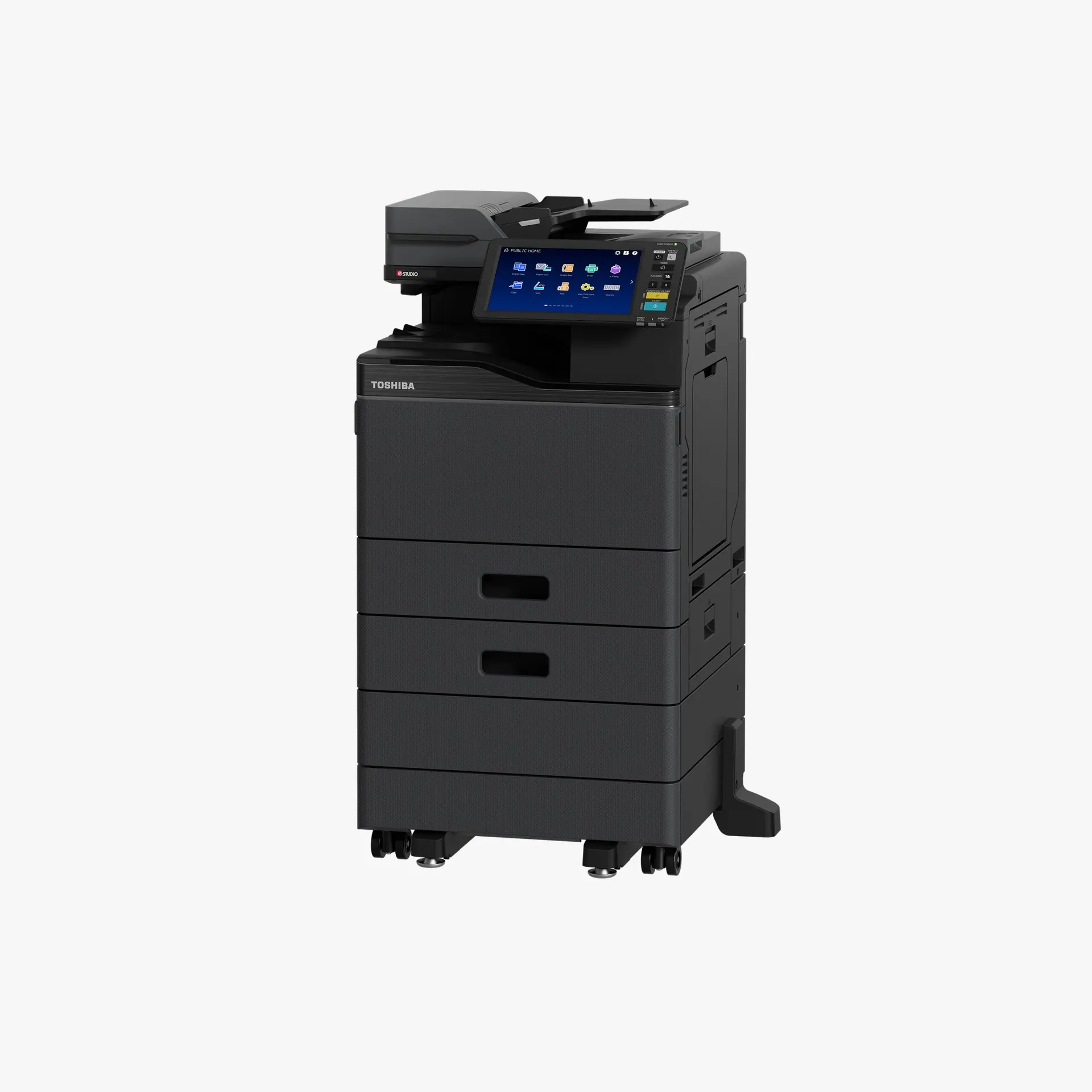

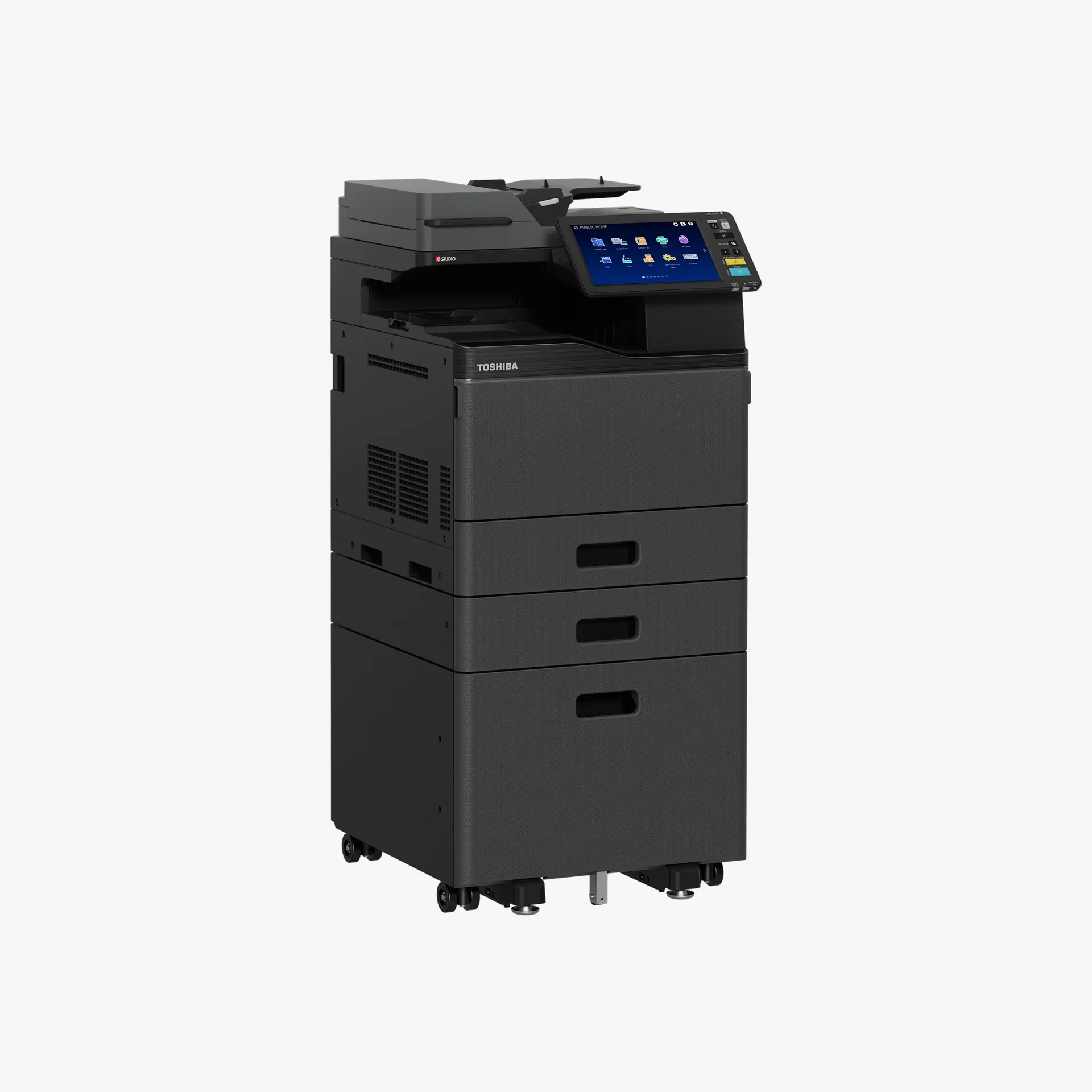

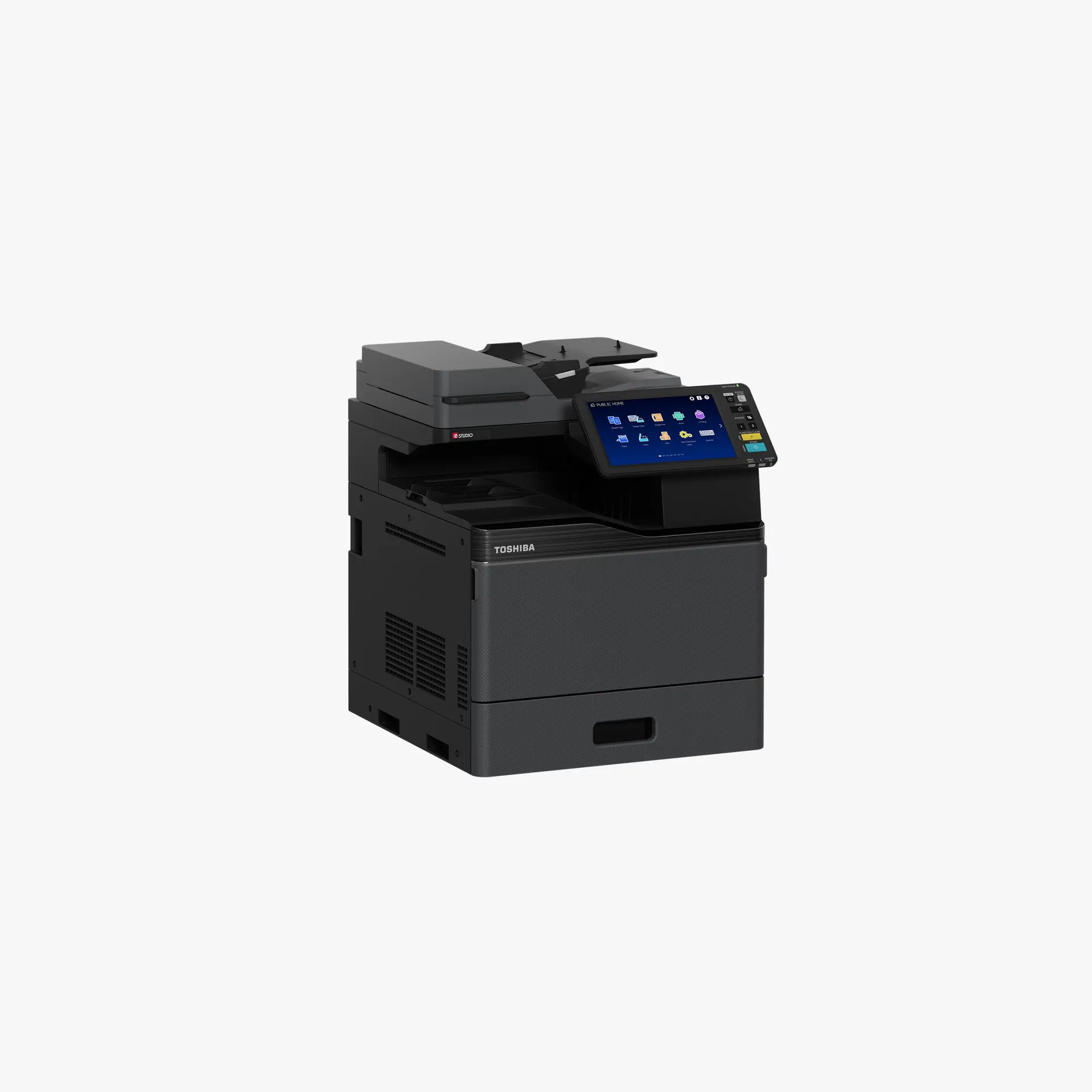

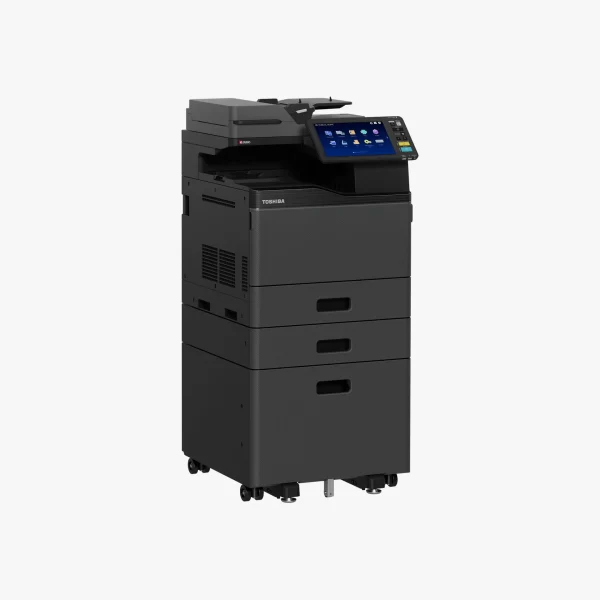

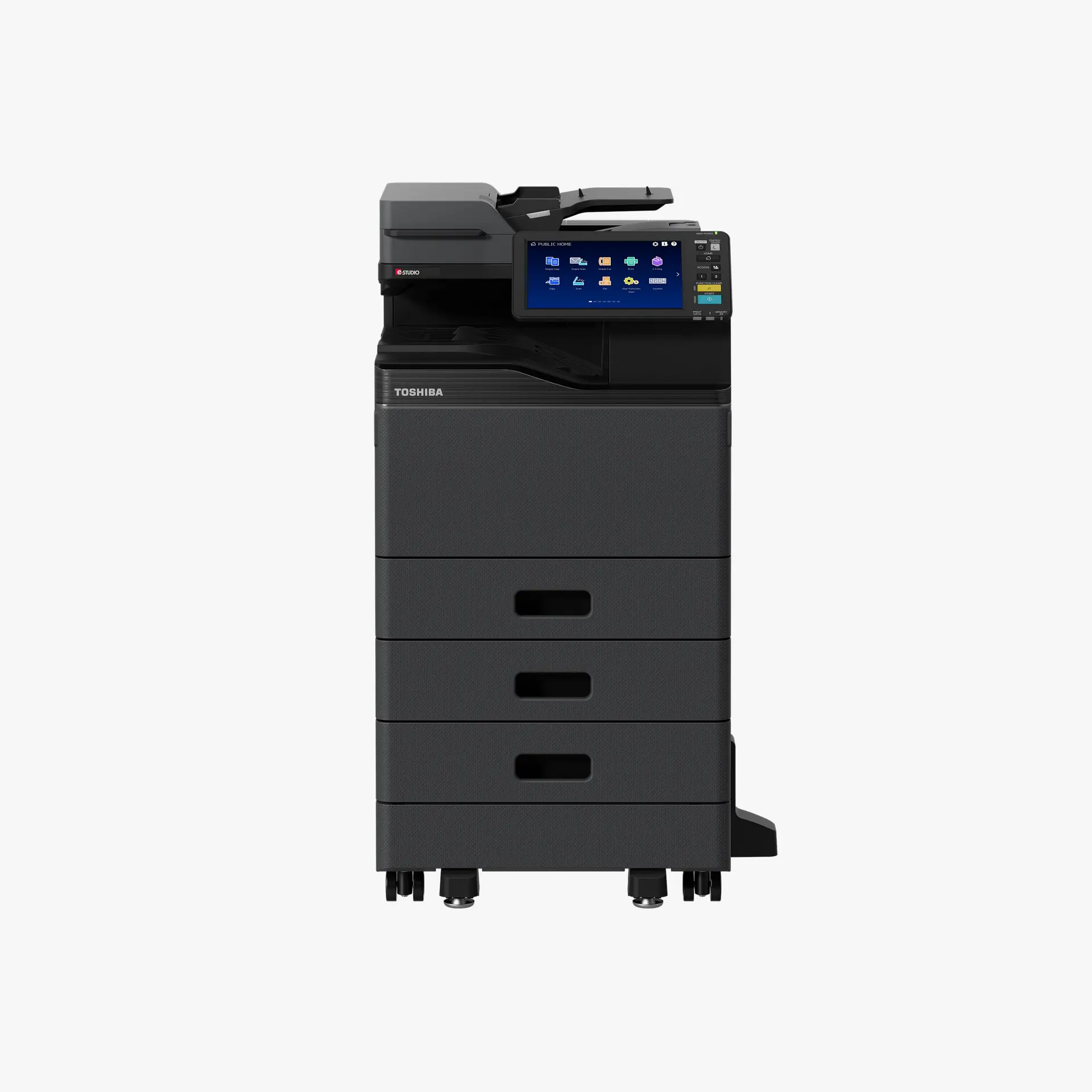

e-STUDIO401AC
Experience everything about a larger MFP through a device that fits right on your desk or rolls up next to it. This color printer is a real team player, offering everything smaller workgroups need to move at the speed of today’s business.
- Print documents faster with speeds up to 42 pages per minute
- Simplify and streamline workflow for small to midsize teams
- Send and track jobs from anywhere through cloud features
- Easily customize touch-screen front panel to your team’s needs
- Description
- Additional information
Description
Technical Specifications
| Features | Productivity |
| Color print speeds | Up to 42 PPM |
| Scan speeds | Up to 120 IPM Duplex |
| e-BRIDGE Next Open Platform support | Yes |
| Built-in Optical Character Recognition | Yes |
| 8.5” x 14” 140 lb index automatic duplexing from the drawers | Yes |
| 140 lb Index support through the bypass | Yes |
| Blank page omission for copying and printing | Yes |
| Outside Erase for copying books and 3D objects | Yes |
| High compression PDF scanning (Slim PDF) | Yes |
| Convenience Stapler Option | Yes |
| Universal Print Driver | Yes |
| 256GB Self-Encrypting, Solid State Drive (SSD) | Optional 512GB (768GB total) |
| Job Skip | Yes |
| Image Quality | |
| Patented ASICs | Provide superb clarity and rich text renditions in all scanning, printing and copying jobs |
| Print resolution | Up to 1200 x 1200 dpi |
| Automatic Image quality control function | Yes |
| Operability | |
| Control Panel | Toshiba developed 10.1-inch tablet-style touch color control panel for easier operation |
| Quick Copy & Scan Buttons | Yes |
| Scan Preview | Yes |
| Fax Option | Yes |
| One Touch Templates | Yes |
| Private Printing Feature | Yes |
| Main Specifications | |
| Copy System | Indirect Electrostatic Photographic Method/OPC/LED Printing/Heat Roller Fusing |
| Display | 10.1” Color WVGA Touch Screen Tilting Display |
| Copy Speed | 42 PPM (LT) |
| First Copy Out | 6.3 Seconds Color/5.1 Seconds B&W |
| Warm-Up Time | Approx. 20 Seconds |
| Copy Resolution | 600 x 600 dpi |
| Multiple Copying | Up to 999 Copies |
| Paper Capacity | Standard 650 Sheets/Max. 3,200 Sheets |
| Original Feed | Standard 100-Sheet DSDF |
| Scan Speed & Weights | Up to 120 IPM Duplex, 60 IPM Simplex (Monochrome or Color) Simplex: 9.3 -28lb Bond, Duplex: 9.3 – 28lb Bond |
| Max. Original Size | LG (8.5” x 14”) |
| Paper Feed Sizes | Drawer 1: 550 Sheets-ST-R to LG Stack Feed Bypass: 100 Sheets-3.9”x5.8”to8.5” x 14” (LG),Envelope, Banner (8.5” x 52”) Opt. 550-Sheet Paper Feed Unit (up to 3)-ST-R to 8.5” x 14” (LG) Opt. 2,000-Sheet LCF (Pedestal Type)-LT Only |
| Paper Weights | Standard: 550 Sheets x 1-16 lb Bond-140 lb Index Stack Feed Bypass: 100 Sheets-14 lb Bond-140 lb Index Opt. 550-Sheet Paper Feed Unit-16 lb Bond-140 lb Index Opt. 2,000-Sheet LCF (Pedestal Type)-16 lb Bond-140 lb Index |
| Duplex | Standard Automatic Duplex Unit (16 lb Bond-140 lb Index) |
| Reproduction Ratio | 25% to 400% |
| Max Duty Cycle | Max. 150K Month |
| Weight | Approx. 117 lb |
| Approx. Dimensions | 20.5” (W) x 21.3” (D) x 25” (H) |
| CMYK Toner Yield | K: 18.4K; CMY: 17.4K @ 5% |
| Power Source | 120 Volts, 50/60 Hz, 12 Amps |
| Power Consumption | Maximum 1.5 kW (120 V) |
| CPU | Intel ApolloLake™ E3930 (Dual-Core) |
| Memory | 4GB |
| Solid State Drive | 256GB Self-Encrypting, Optional 512GB |
| Controller Specifications | |
| PDL | PCL5e, PCL5c, PCL6 (PCL XL), PS3, PDF, XPS, JPEG |
| Print Speed | 35 Pages Per Minute (LT) |
| Print Resolution | 600 x 600 dpi (5bit), 1,200 x 1,200 dpi (Color/2bit) or 3,600 (Equivalence) x 1,200 dpi (BW/with Smoothing) (PS3 Only) |
| Network Operating Systems | Windows®10 (32 bit/64 bit), Windows®11 (64 bit), Windows Server® 2016/2019/2022, Citrix XenApp/XenDesktop 7.6 (LTSR), Citrix XenApp/XenDesktop 7.15 (LTSR), Citrix Virtual Apps and Desktops 2xxx(CR), Citrix Virtual Apps and Desktops 1912 (LTSR), Citrix Virtual Apps and Desktops 2203 (LTSR) |
| Unix Filters | Unix®11, HP-UX (Ver 11.iv3), AIX 7.x, Linux® RedHat Enterprise 5.x, 6.x, 7.x, Fedora Ver 27, 28, SuSE Linux Enterprise Server Ver 12, 15, Open SuSE Ver. 13.2, 15, Ubuntu14.04LTS, 18.04, Debian 7.8, 8, CUPS V1.1.15 |
| Network Protocols | TCP/IP (IPv4, IPv6), NetBIOS over TCP/IP, EtherTalk for Macintosh Environments |
| Printing Protocols | SMB, LPR/LPD, IPP (Ver.1.0) w/Authentication, Port 9100 (Bi-Directional),WS Print (w/ SSL/TLS) TLS1.2, 1.3 Support, FTP (w/ SSL/TLS) TLS1.2, 1.3 Support, iBeacon, Mopria Beacon, Bluetooth (HCRP/BIP/OPP/FTP) optional |
| Print Drivers | Windows®10 (32 bit/64 bit), Windows®11 (64 bit), Windows® Server® 2016/2019/ 2022 (64 bit), Macintosh® : macOS X 10.12, 13, 14, 15, mac OS 11, 12, 13, 14, 15 |
| Interface | RJ-45 Ethernet (10/100/1000 Base-T), USB 2.0 (High-Speed) Optional IEEE802.11b/g/n, Wireless LAN, Optional Bluetooth |
| Wireless Device | AirPrint®, Mopria®, e-BRIDGE Print & Capture Application on iOS and Android (Available via Apple® App Store or Google Play) |
| Device Management | TopAccess, Elevate Sky MFP Connect |
| Account Control | Up to 10,000 Users or 1,000 Departments Supports User Authentication (on Device), Login Name/Password (via Windows® Domain) or Login Name/Password (via LDAP Server) for Copy, Print, Scan, Fax, List, and User Function |
| Accessibility Features | Tilt Front Panel, Job Programs, Universal Grip for Paper Trays, Disable Screen Timeout and Audible Beep Message Alerts, optional Voice Guidance |
| Security Features | User Authentication, SCEP, Disable e-Filing, Disable Copy, Disk Overwrite, IP Address Filtering (10 Sets), MAC Address Filtering (10 Sets), Network Service Control, Network Port Control, SMB Packet Signing, SSL/TLS (HTTP, IPP, LDAP, SMTP, POP, FTP, DPWS, SYSLOG), IPsec (IKEv1, IKEv2), Security Mode Change, CC Certified (ISO/IEC15408*) with HCD-PP v1.0*, IEEE802.1X (Wired/Wireless), Digital Signature for Client Utilities, Password Policy, Password Lock, Password Expiration, Self Testing, Job Access Control, Log Access Control for Job Log, Security Stamp, Role Based Access Control, Secure PDF, Digital Signature for Firmware Update, Integrity Check Function, Image Log, Card Authentication, NFC Authentication |
| Environmental Stds | ENERGY STAR® (V3.2), EPEAT Gold, Californian Proposition 65 |
| Certification | IPv6 Phase 2, Windows (WHQL) Printer (10, 11, 2016, 2019, 2022), Scanner (WIA Driver), Citrix®, SAP (Gold Member), AirPrint® and Mopria®, iBeacon® for Printers, Mopria Beacon |
| Scan Specifications | |
| Scan Speed | DSDF Scan: Up to 120 IPM Duplex, 60 IPM Simplex (Monochrome or Color) |
| Scan Modes | Standard: Full Color, Auto Color, Monochrome, Grayscale |
| Scan Resolution | 600 dpi, 400 dpi, 300 dpi, 200 dpi, 150 dpi, 100 dpi |
| File Formats | Monochrome: TIFF-Multi/Single Page, PDF-Multi/Single Page, Searchable PDF, DOCX, XLSX, PPTX Color/Grayscale: JPEG, TIFF-Multi/Single Page, PDF-Multi/Single Page, Slim PDF |
| Image Compression | Color/Grayscale: JPEG (High, Middle, Low) |
| Fax Specifications | |
| Compatibility | Super G3 |
| Data Compression | MH/MR/MMR/JBIG |
| Transmission Speed | Approx. 3 Seconds Per Page |
| Fax Modem Speed | Up to 33.6 Kbps |
| Memory Transmission | 100 Jobs (with HDD), 2,000 Destinations Max. 400 Destinations /Job |
| Scan Speed | 0.7 Seconds Per Page, Maximum 120 IPM |
| e-Filing Specifications | |
| Operation Method | Color Touch Screen Control Panel or Client PC |
| Number of Boxes | 1 Public Box; 200 Private User Boxes |
| Capacity of Boxes | 100 Folders Per Box, 400 Documents Per Folder/Box, 200 Pages Per Document |
Additional information
| Brand | Toshiba |
|---|---|
| Speed | 42 PPM |
