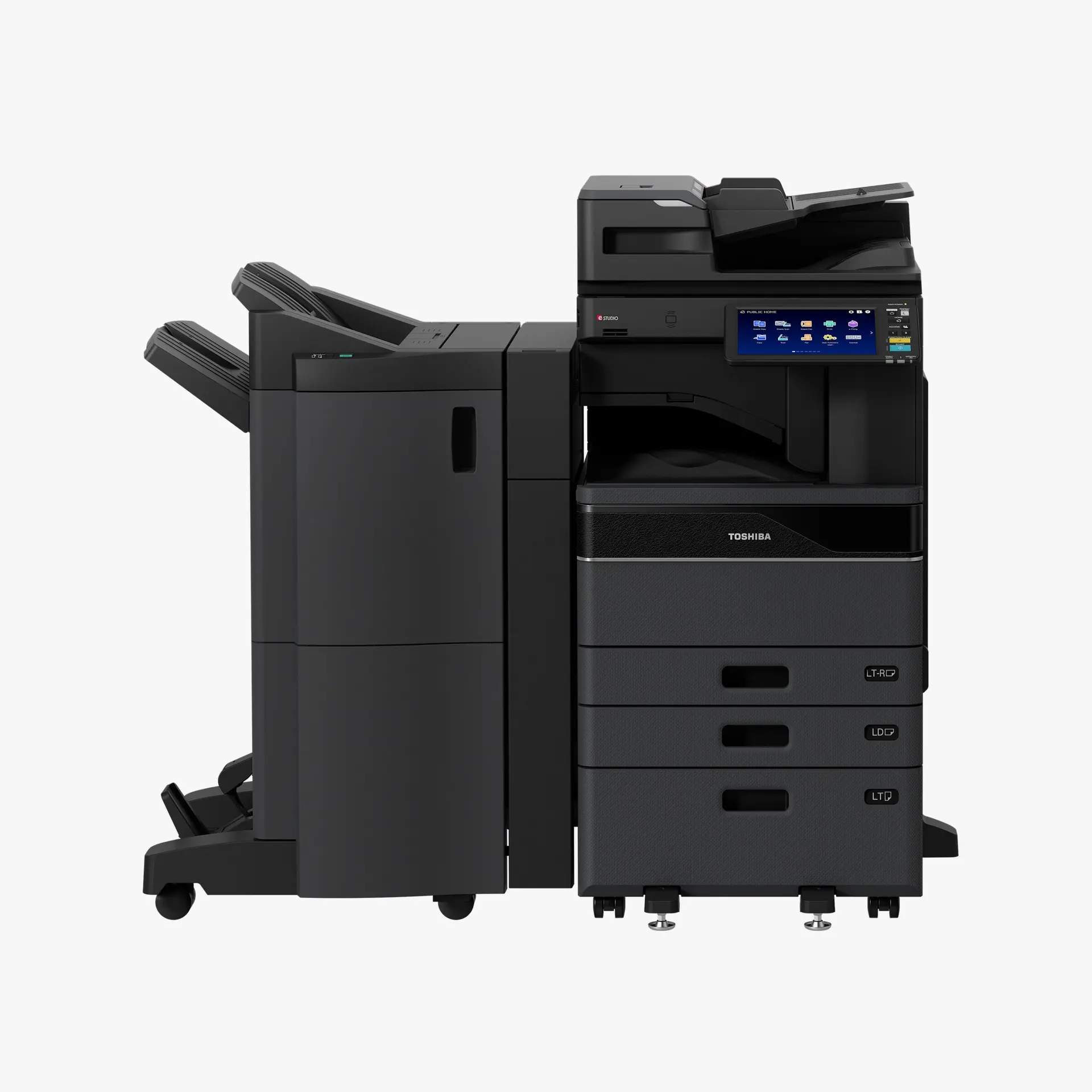

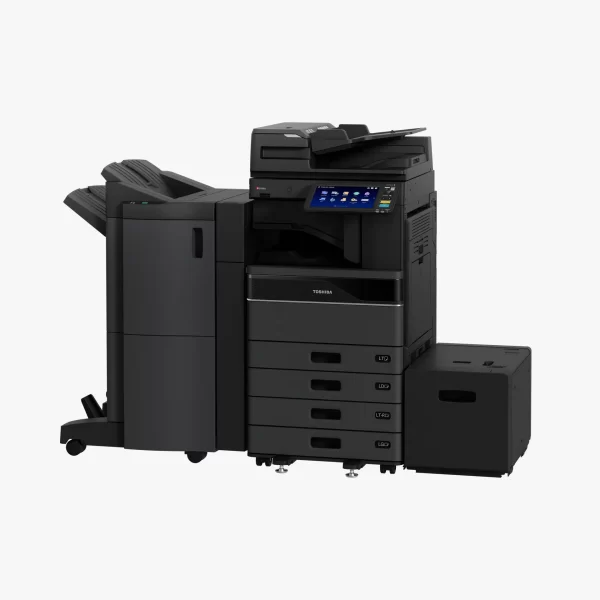

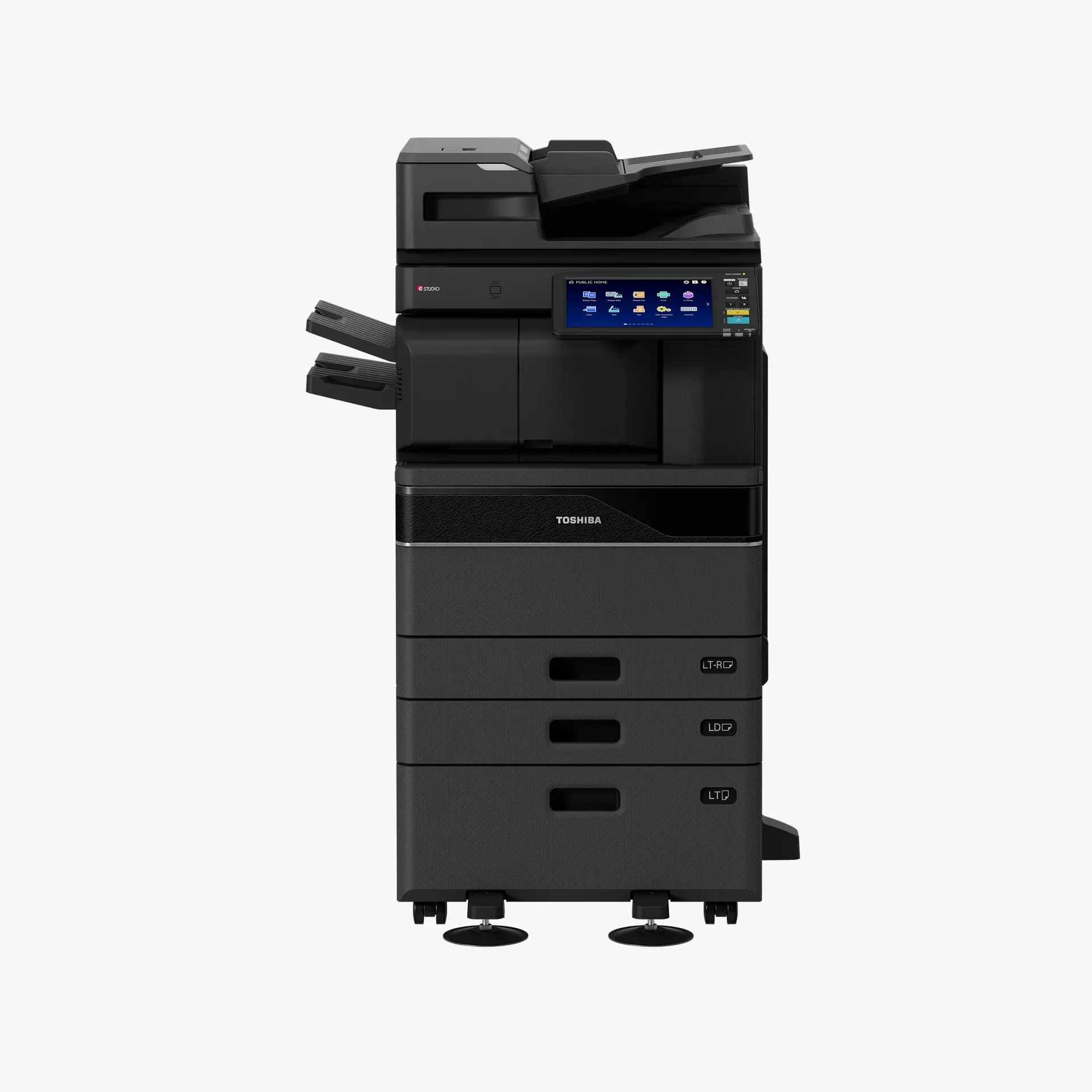

Make hybrid working easier than ever with this compact color MFP. Part of our most advanced MFP series, the e-STUDIO3525AC takes up minimal space at the office and allows teams to simply and safely print from anywhere through cloud features.

  • Print faster with speeds up to 35 pages per minute
  • Print, copy, scan, and fax in a small footprint
  • Free your team to work remotely with cloud features
  • Safeguard information with advanced security

Brochure

Categories: , Brand:

Description

Technical Specifications

Feature Description
Dual Scan Document Feeder Available with Double Feed Detection – Scans up to 240 IPM; holds up to 300 originals (refillable)
10.1” Tiltable Front Panel Makes programming jobs easier than ever – even for wheelchair users – and is Section 508 friendly
Card Reader Pocket Enables badge authentication to control device access
CAC/PIV Authentication Enables controlled device access
Soft Closing Drawers Automatically pull drawer closed when initiated and provide a luxury experience
65-Sheet Stapling Finishers and an Output Capacity of up to 3,000 Pages Enables bigger jobs
Saddle Stitch Finishing Enables up to 60-page booklets, and unique avalanche tray increases exit capacity
Tandem LCF Pedestal Holds 2 x 1,000-sheet stacks of letter-size paper, while refillable design allows users to add paper while MFP is in use
2,000-Sheet External LCF Boosts paper capacity to an amazing 5,200 sheets
Main Specifications
Copy Process Indirect Electrostatic Photographic Method/OPC/Laser Printing/Heat Roller Fusing
Display 10.1” Color WSVGA Touch Screen Tilting Display
Copy Speed 35 PPM (LT)
First Copy Out Color: Less Than 7.8 Seconds, Monochrome: Less Than 5.9 Seconds
Warm-Up Time From Powering On: Approx. 20 Seconds, From Sleep & Lower Power: Less Than 12 Seconds
Copy Resolution 600 x 600 dpi
Stack Feed Bypass 3.9” x 5.8” to 12” x 18”, 12” x 47” Banner, Envelope
Multiple Copying Up to 999 Copies
Paper Capacity Standard 1,200 Sheets/Max. 5,200 Sheets
Original Feed 300-Sheet DSDF or DSDF with Double-Feed Detection or 100-Sheet RADF
Max. Original Size LD/A3
Paper Feed Sizes Drawer 1: 550 Sheets-ST-R to LD, Drawer 2: 550 Sheets-ST-R to 12” x 18”, Stack Feed Bypass: 100 Sheets-3.9” x 5.8” to LD, Opt. 550-Sheet Paper Feed Pedestal-ST-R to LD, Opt. 550-Sheet Drawer for PFP-ST-R to LD, Opt. Envelope Cassette for PFP-Approx. 60 Envelopes/550 Sheets-ST-R to LG, Opt. 2,000-Sheet Tandem LCF (Pedestal Type)-LT Only, Opt. 2,000-Sheet External LCF-LT Only
Paper Weights Standard: 550 Sheets x 2-16 lb Bond-140 lb Index, Stack Feed Bypass: 100 Sheets-14 lb Bond-140 lb Index, Opt. 550-Sheet Paper Feed Pedestal-16 lb Bond-140 lb Index, Opt. 550-Sheet Drawer for PFP -16 lb Bond-140 lb Index, Opt. Envelope Cassette for PFP-16 lb Bond-140 lb Index, Opt. 2,000-Sheet Tandem LCF (Pedestal Type)-16 lb Bond-140 lb Index, Opt. 2,000-Sheet External LCF-LT-16 lb Bond-140 lb Index
Duplex Standard Automatic Duplex Unit (16 lb Bond-140 lb Index)
Reproduction Ratio 25% to 400%
Max Duty Cycle Max. 105K Month (Color: 100%) Max. 210K Month (Monochrome: 100%)
Weight Approx. 169 lb
Approx. Dimensions 23” (W) x 25.2” (D) x 31” (H)
Toner Yield CMY: 38K, K: 39.8K @ 5%
Power Source 120 Volts, 50/60 Hz, 12 Amps
Power Consumption Maximum 1.8kW (120V)
Plug Type NEMA 5-15
Memory 4GB
Hard Disk Drive 128GB Solid State Drive (SSD)
Controller Specifications
PDL PCL5e, PCL5c, PCL6 (PCL XL), PS3, PDF, XPS, JPEG
Print Speed 35 PPM (LT)
Print Resolution 600 x 600 dpi (5 bit), 1,200 x 1,200 dpi (Color/2 bit), or 3,600 (Equivalence) x 1,200 dpi (BW/with Smoothing) (PS3 Only)
Operating Systems Windows® 8.1, 10, 11, Windows Server® 2012/R2, Windows Server® 2016/19/22, Macintosh® (macOS X 10.10-15, 12), Unix®, Linux®
Network Protocols TCP/IP (IPv4, IPv6), NetBIOS over TCP/IP, IPX/SPX® for Novell® Environments, EtherTalk® for Macintosh Environments
Printing Protocols SMB V1-3, LPR/LPD, IPP V1.2 w/ Authentication (TLS 1.2/1.3), AppleTalk® PAP or EtherTalk®, Port 9100 (Bi-Directional), NetWare P-SERVER LPD w/ iPrint, Bluetooth (HCRP/BIP/OPP/FTP), WS Print, FTP
Print Drivers Windows® 8.1 (32-bit, 64-bit), Windows Server® 2012/R2 (64-bit), Windows® 10, 11 (64-bit), macOS X 10.12-15, 11, 12
Interface RJ-45 Ethernet (10/100/1000 Base-T), USB 2.0 (High-Speed), Optional 802.11b/g/n, Wireless LAN, Optional Bluetooth
Wireless Device AirPrint®, Mopria®, e-BRIDGE Print & Capture Application on iOS and Android (Available via Apple® App Store or Google Play)
Device Management TopAccess
Account Control Up to 10,000 users or 1,000 Departments Supports User Authentication (on Device), Login Name/Password (via Windows® Domain) or Login Name/Password (via LDAP Server) for Copy, Print, Scan, Fax, List, and User Function
Security Features
Security Features User Authentication, Trusted Platform Module, On-Board Data Scramble Function, SCEP, Disable e-Filing, Disable Copy, Disk Overwrite, IP Address Filtering (10 Sets), MAC Address Filtering (10 Sets), Network Service Control, Network Port Control, SMB Packet Signing, SSL/TLS (HTTP, IPP, LDAP, SMTP, POP, FTP, DPWS, SYSLOG), IPsec (IKEv1, IKEv2), Security Mode Change, CC Certified (ISO/IEC15408*) with HCD-PP v1.0, IEEE802.1X (Wired/Wireless), Digital Signature for Client Utilities, Password Policy, Password Lock, Password Expiration, Self Testing, Job Access Control, Log Access Control for Job Log, Security Stamp, Role Based Access Control, Secure PDF, Digital Signature for Firmware Update, Integrity Check Function, Image Log, Card Authentication, Biometric Authentication *Conformance with HCD-PP v1.0 in High Security Mode
Environmental Standards ENERGY STAR® (V3.2), EPEAT Gold, Californian Proposition 65
Certification WHQL (Windows® 8, 8.1, 10, 11, 2012, 2012 R2, 2016/19/22), Novell®, Citrix®, SAP, AirPrint® and Mopria®

Additional information

Brand

Toshiba
Speed

35 PPM
