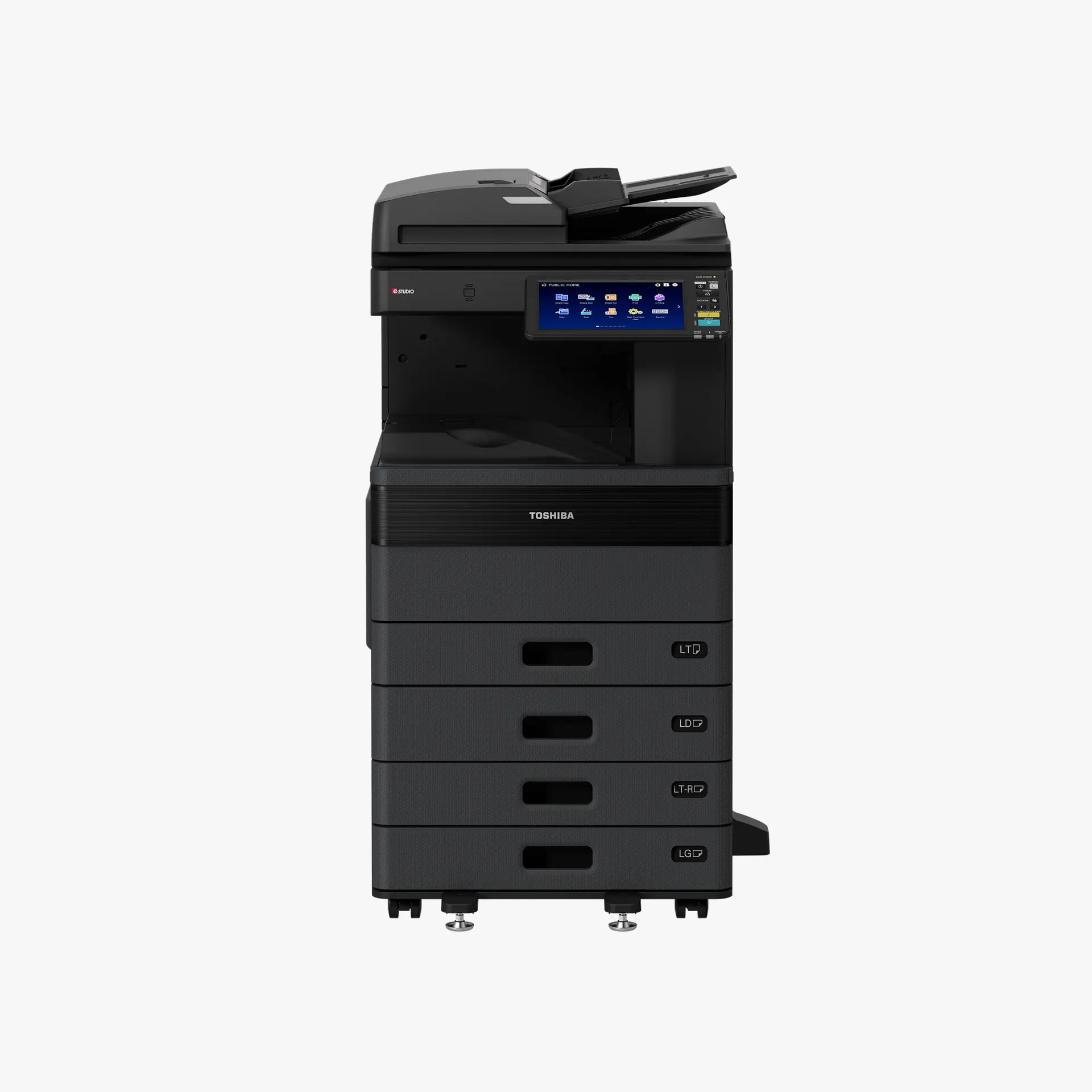

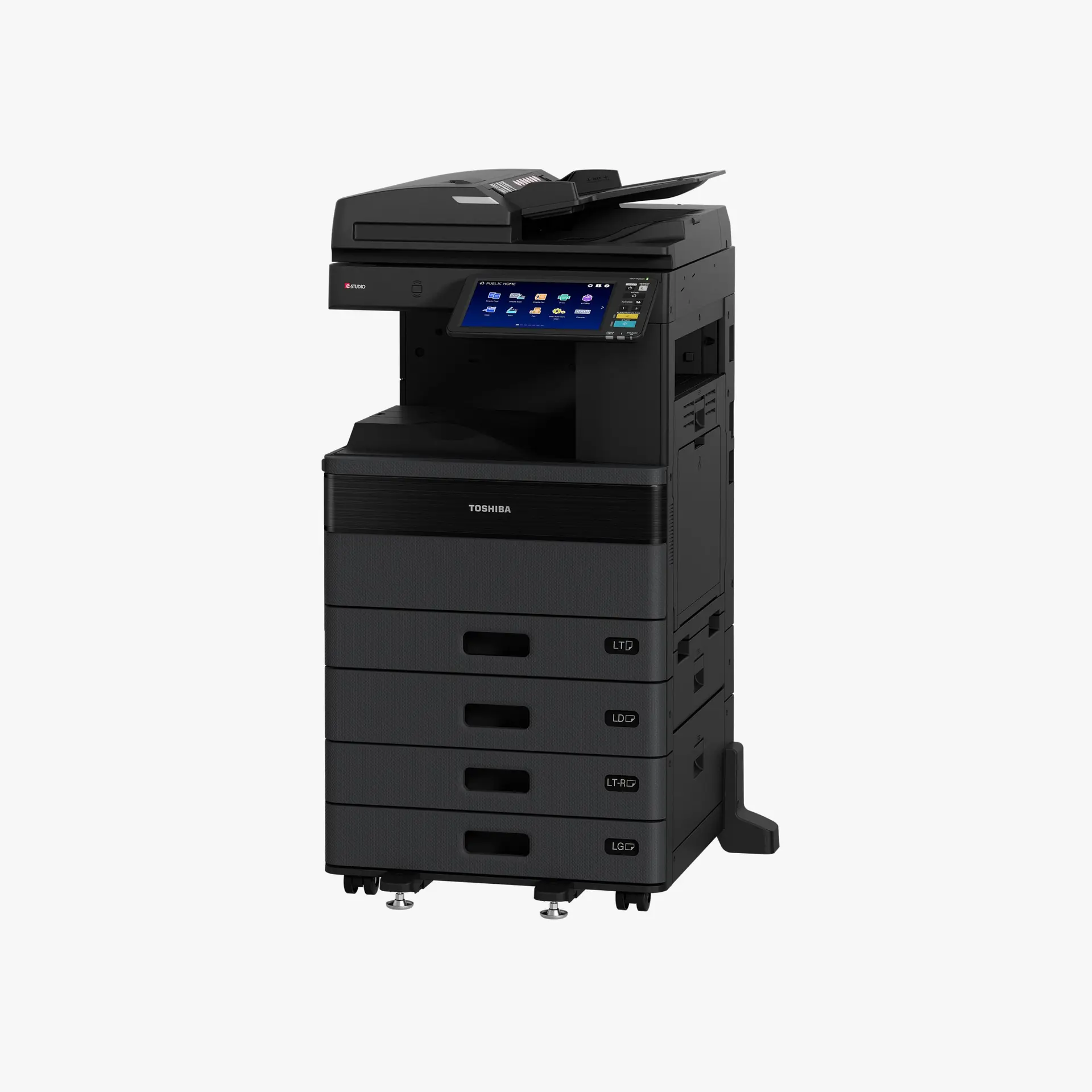

e-STUDIO2521AC
Big and better changes for small workgroups start with the e-STUDIO2521AC. Protecting data with elevated security, this MFP integrates multiple features into one dynamic device so the team can perform a variety of tasks effortlessly.
- Print faster with speeds up to 25 pages per minute
- Maximize office space with compact design
- Copy, print, scan, and fax more efficiently
- Description
- Additional information
Description
Technical Specifications
| Features | |
| PRODUCTIVITY | |
| Color print speeds of up to 25 PPM | B&W up to 25 PPM |
| Color scan speeds of up to 73 IPM | at 300 x 300dpi resolution |
| e-BRIDGE Next Open Platform support | |
| Low energy fuser system | |
| 11″ x 17″ 90 lb index automatic duplexing from the drawers | |
| 110 lb cover support through the bypass | |
| Blank page omission for copying and printing | |
| Outside Erase for copying books and 3D objects | |
| High compression PDF scanning (Slim PDF) | |
| Toshiba inner finisher | |
| Universal Print Driver | |
| 128GB Solid State Drive (SSD) | |
| Job Skip | |
| IMAGE QUALITY | |
| Patented ASICs provide superb clarity and rich text renditions in all scanning, printing and copying jobs | |
| Up to 600 x 600 dpi print resolution | |
| Automatic Image quality control function | |
| OPERABILITY | |
| New Toshiba developed 10.1” tablet-style touch color control panel for easier operation | |
| Quick Copy & Scan Buttons | |
| Scan Preview | |
| New Control Panel Print Function button | |
| Dual-line Fax Option | |
| One Touch Templates | |
| Private Printing Feature | |
| SERVICEABILITY | |
| Easy Replaceable Unit Design | |
| Long Life consumables and duty cycles | |
| Main Specifications | |
| Copy Process | Indirect Electrostatic Photographic Method/OPC/Laser Printing/Heat Roller Fusing |
| Display | 10.1” Color WSVGA Touch Screen Tilting Display |
| Copy Speed | 25 PPM (LT) |
| First Copy Out | Color: Less Than 9.5 Seconds / Monochrome: Less Than 7.1 Seconds |
| Warm-Up Time | From Powering On: Approx. 21 Seconds From Sleep & Low Power: Less than 15 Seconds |
| Copy Resolution | 600 x 600 dpi |
| Stack Feed Bypass | 3.9″ x 5.8″ to 11″ x 17″, Envelope |
| Multiple Copying | Up to 999 Copies |
| Paper Capacity | Standard 350 Sheets/Max. 2,900 Sheets |
| Original Feed | 100-Sheet RADF |
| Max. Original Size | LD/A3 |
| Paper Feed Sizes | Drawer 1: 250 Sheets-ST-R to LD, Stack Feed Bypass: 100 Sheets-3.9” x 5.8” to LD, Opt. Paper Feed Unit: 550 Sheets-ST-R to LD, Opt. 550-Sheet Paper Feed Pedestal-ST-R to LD, Opt. 550-Sheet Drawer for PFP-ST-R to LD, Opt. Envelope Cassette for PFP-Approx. 60 Envelopes/550 Sheets-ST-R to LG, Opt. 2,000-Sheet Tandem LCF (Pedestal Type)-LT Only |
| Paper Weights | Standard: 250 Sheets-16 lb Bond-90 lb Index, Stack Feed Bypass: 100 Sheets-16 lb Bond-90 lb Index, Opt. 550-Sheet Paper Feed Pedestal-16 lb Bond-90 lb Index, Opt. 550-Sheets Drawer for PFP: 16 lb Bond-90 lb Index, Opt. Envelope Cassette for PFP-16 lb Bond-90lb Index, Opt. 2,000-Sheet Tandem LCF (Pedestal Type)-17 lb Bond-90 lb Index |
| Duplex | Standard Automatic Duplex Unit: 16 lb Bond-90 lb Index |
| Reproduction Ratio | 25% to 400% |
| Max Duty Cycle | Max. 84K Month (Color/Monochrome: 100%) |
| Weight | Approx. 125 lb |
| Approx. Dimensions | 26” (W) x 23” (D) x 31” (H) |
| Toner Yield | CMY: 38K, K: 39.8K @ 5% |
| Power Source | 120 Volts, 50/60 Hz, 12 Amps |
| Power Consumption | Maximum 1.5kW (120V) |
| Plug Type | NEMA 5/15 |
| Memory | 4GB |
| Hard Disk Drive | 128GB Solid State Drive (SSD) |
| Controller Specifications | |
| PDL | PCL5e, PCL5c, PCL6 (PCL XL), PS3, PDF, XPS, JPEG |
| Print Speed | 25 PPM (LT) |
| Print Resolution | 600 x 600 dpi (5 bit), 1,200 x 1,200 dpi (Color/2 bit), or 3,600 (Equivalence) x 1,200 dpi (BW/with Smoothing) (PS3 Only) |
| Operating Systems | Windows® 8.1, 10, 11, Windows Server® 2012/R2, Windows Server® 2016/19/22, Macintosh® (macOS X 10.10-15, 12), Unix®, Linux® |
| Network Protocols | TCP/IP (IPv4, IPv6), NetBIOS over TCP/IP, IPX/SPX® for Novell® Environments, EtherTalk® for Macintosh Environments |
| Printing Protocols | SMB V1-3, LPR/LPD, IPP V1.2 w/ Authentication (TLS 1.2/1.3), AppleTalk® PAP or EtherTalk®, Port 9100 (Bi-Directional), NetWare P-SERVER LPD w/ iPrint, BlueTooth (HCRP/BIP/OPP/FTP), WS Print, FTP |
| Print Drivers | Windows® 8.1 (32-bit, 64-bit), Windows Server® 2012/R2 (64-bit), Windows® Server 2016/19/22, Windows® 10, 11 (64-bit), macOS X 10.12-15, 11, 12 |
| Interface | RJ-45 Ethernet (10/100/1000 Base-T), USB 2.0 (High-Speed), Optional IEEE802.11b/g/n, Wireless LAN, Bluetooth |
| Wireless Device | AirPrint®, Mopria®, e-BRIDGE Print & Capture Application on iOS and Android (Available via Apple® App Store or Google Play) |
| Device Management | TopAccess |
| Account Control | Up to 10,000 users or 1,000 Departments Supports User Authentication (on Device), Login Name/Password (via Windows® Domain) or Login Name/Password (via LDAP Server) for Copy, Print, Scan, Fax, List, and User Function |
| Accessibility Features | Tilt Front Panel, Job Programs, Universal Grip for Paper Trays, Disable Screen Timeout, Audible Beeps, Optional Voice Assist |
| Security Features | User Authentication, Trusted Platform Module, On-Board Data Scramble Function, SCEP, Disable e-Filing, Disable Copy, Disk Overwrite, IP Address Filtering (10 Sets), MAC Address Filtering (10 Sets), Network Service Control, Network Port Control, SMB Packet Signing, SSL/TLS (HTTP, IPP, LDAP, SMTP, POP, FTP, DPWS, SYSLOG), IPsec (IKEv1, IKEv2), Security Mode Change, CC Certified (ISO/IEC15408*) with HCD-PP v1.0, IEEE802.1X (Wired/Wireless), Digital Signature for Client Utilities, Password Policy, Password Lock, Password Expiration, Self Testing, Job Access Control, Log Access Control for Job Log, Security Stamp, Role Based Access Control, Secure PDF, Digital Signature for Firmware Update, Integrity Check Function, Image Log, Card Authentication, Biometric Authentication *Conformance with HCD-PP v1.0 in High Security Mode |
| Environmental Stds | ENERGY STAR® (V3.2), EPEAT Gold, Californian Proposition 65 |
| Certification | WHQL (Windows® 8, 8.1, 10, 11, 2012, 2012 R2, 2016/19/22), Novell®, Citrix®, SAP, AirPrint®, and Mopria® |
| Scan Specifications | |
| Scan Speed | RADF Scan: Up to 73 IPM (Monochrome or Color) |
| Scan Modes | Standard: Full Color, Auto Color, Monochrome, Grayscale |
| Scan Resolution | 600 dpi, 400 dpi, 300 dpi, 200 dpi, 150 dpi, 100 dpi |
| File Formats | Monochrome: TIFF-Multi/Single Page, PDF-Multi/Single Page, Searchable PDF, XPS-Multi/Single Page, DOCX, XLSX, PPTX Color/Grayscale: JPEG, TIFF-Multi/Single Page, PDF-Multi/Single Page, Slim PDF, Searchable PDF, XPS-Multi/Single Page, DOCX, XLSX, PPTX |
| Image Compression | Color/Grayscale: JPEG (High, Middle, Low) |
| Fax Specifications | |
| Compatibility | Super G3 |
| Data Compression | MH/MR/MMR/JBIG |
| Transmission Speed | Approx. 3 Seconds Per Page |
| Fax Modem Speed | Up to 33.6 Kbps |
| Memory Transmission | 100 Jobs, 2,000 Destinations Max. 400 Destinations /Job |
| e-Filing Specifications | |
| Operation Method | Color Touch Screen Control Panel or Client PC |
| Number of Boxes | 1 Public Box; 200 Private User Boxes |
| Capacity of Boxes | 100 Folder per Box; 400 Documents per Folder/Box; 200 Pages per Document |
Additional information
| Brand | Toshiba |
|---|---|
| Speed | 25 PPM |
